China rubber and plastic products co., LTD is a professional manufacturer of aluminum silicate. Company continuously introducing advanced technology at home and abroad carry on the improvement of self digestion, was provided for the existing equipment, technology innovation, and always maintain the leading level in the industry. Aluminum silicate using hard clay clinker as raw materials, the resistance and blowing or electric arc furnace melting process. Aluminum silicate is one kind of aluminum silicate, character is colorless crystals.
- Product display
- Performance is introduced
- Technical indicators

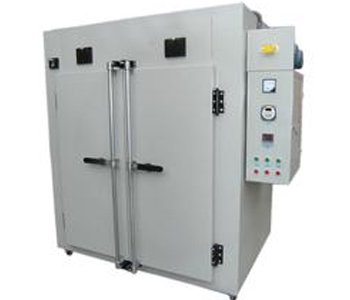

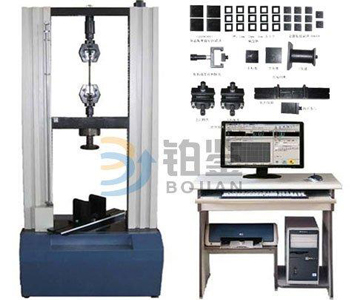

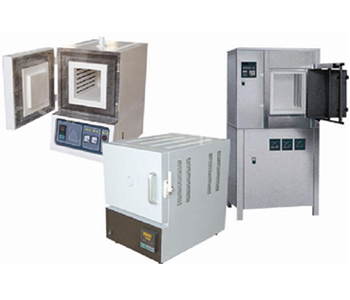

- Testing instrument
- contact
 |  |  |
 |  |  |
1, centrifugal aluminum silicate cotton
Inner Mongolia shenzhou rubber and plastic products co., LTD. ordinary type aluminum silicate fiber cotton, using hard clay clinker as raw materials, the resistance furnace melting, blowing spun into fiber long fiber, low content of slag ball, lower than the fiber material, untreated spun fiber forming process of long fiber, is a high temperature furnace lining crack filling material, heating device wall and excellent spinnability of the textile materials.
Technical characteristics
· Low thermal conductivity, low thermal capacity
· No corrosive substances
· Excellent heat insulation, sound-absorbing
Scope of application
· Fiber paper and vacuum forming products raw materials
· Fiber spray coating raw materials
· Fiber castable, daub is raw materials
· High temperature furnace heating device wall lining crack filler material
· Fiber textile products raw materials
Inner Mongolia shenzhou aluminum silicate fiber rope rubber and plastic products co., LTD
This is a kind of innovation lawmakers and the elasticity of the glass fiber rope, have very strong contractibility, widely used in filling material, boiler and furnace wall or soft joint between the furnace body, has good insulation and heat resistance, also used in motor, instrument, electrical insulating materials. ￠4 mm - 25 mm ￠. Heat-resistant & le; 550
Technical characteristics
· The use of high temperature The long-term working temperature can be short-term working temperature can reach 1200 to 1000 degrees
· Resistance to acid and alkali corrosion and resist the corrosion of aluminum, zinc, etc
·The bottom of the coefficient of thermal conductivity Heat preservation performance is good And the high temperature high strength
· Non-alkali glass fibre reinforced ceramic fiber products with good electric insulation and high temperature electrical insulation
· non-toxic There is no odor Won't cause harm to human body health
Special high temperature aluminum silicate binder
Inner Mongolia shenzhou rubber and plastic products co., LTD., high temperature binder is a kind of good inorganic cementitious material, it has good workability, contractor will, high temperature resistant, high bond strength, resistance to slag erosion capability, stable performance, long service life, application of a wide range of outstanding advantages, can be used for a variety of monolithic refractories binder, finalize the design system of refractory product paste, repair, supply all kinds of furnace lining can be produced at the same time high mud and special working parts of the surface strengthening protection coating
Silicate aluminum refractory components
Aluminum silicate refractory component is also known as refractory fibre prefabricated components, according to its structure form can be divided into: Z type refractory fiber assembly, u-shaped combination group, standard fold the blanket
Technical characteristics
· Excellent chemical stability
· Excellent thermal stability
· Excellent elasticity (because of pre compression fiber, its expansion can compensate fiber shrinkage,
· Improve the adiabatic performance of fiber lining)
· Low thermal conductivity, low thermal capacity.
Scope of application
Widely used in metallurgy, machinery, ceramics, building materials, petrochemical and other industries all kinds of industrial furnace, heating furnace lining.
2, centrifugal aluminum silicate tubeshenzhouAluminum silicate shell by bonding agent containing a certain percentage of the silicate blanket into mill roll tube billet, after curing with formation of stereotypes aluminum silicate fiber tube shell, heterosexual products containing adhesive aluminum silicate blanket billet in fixed shape.
Product features
· Low thermal conductivity, low thermal capacity.
· good vibration resistance and thermal stability.
· excellent machining performance.
· Construction more convenient, more quickly.
Range of application
Widely used in power plants, chemical, JiaoLian, shipbuilding, heating and heat pipe heat preservation heat insulation.
3, centrifugal aluminum silicate needled felt
ShenzhouAluminum silicate acupuncture blankets, by jilt silk production aluminum silicate fiber cotton fiber forming process, heat setting, and vertical and horizontal cutting and curly,with bulk density, different thickness of aluminum silicate acupuncture blankets, provides users with a wide range of material selection, in order to obtain the best heat insulation structure and energy efficiency.
Standard aluminum silicate acupuncture blanket 1050 ℃
High purity aluminum silicate acupuncture blankets 1150 ℃
High type aluminum silicate aluminum needle carpet 1260 ℃
Type containing zirconium silicate aluminum needle carpet 1450 ℃
Technical characteristics
--Low thermal conductivity, low thermal capacity
--Excellent thermal stability and thermal shock resistance
--good tensile strength
--excellent heat insulation, fire prevention, sound-absorbing
application
Industrial furnace building materials, heating equipment, high temperature pipe wall lining
Power boiler, steam turbine and nuclear heat insulation
High temperature reaction chemical industry equipment and wall lining of heating equipment
High-rise building fire prevention and heat insulation
Kiln stove, roof insulation
High temperature filter material
4, centrifugal aluminum silicate shenzhoualuminum silicate fiber board, aluminum silicate fiber cotton as raw material, using vacuum forming or dry process technology refined by the dry and machining.
Aluminum silicate fiber board in addition to have excellent properties of bulk aluminum silicate fiber cotton, product quality of a material is solid, good toughness and strength, has a good ability to resist wind erosion. Heating is not inflation, qualitative light, construction is convenient, can be arbitrary bending shear, are ideal of kiln, pipe and other insulation equipment energy-saving materials.
Product advantages
· Low thermal conductivity, low thermal capacity
·Excellent thermal stability and thermal shock resistance
·High crushing strength and good toughness
The classification of temperature
Standard aluminum silicate fiber board 1050 ℃
High purity aluminum silicate fiber board 1150 ℃
High aluminum aluminum silicate fiber board 1260 ℃
Application materials
· Wall lining, industrial furnace, masonry insulation layer
·high temperature of kiln kiln lining, kiln car, door panel, partition kiln furnace temperature points
· High temperature, heat insulation, heat preservation equipment
· In the shipbuilding industry, aerospace, heat insulation, fire prevention, sound insulation, insulation
project | ordinary | High aluminum type | With white type | |
Classification of temperature ((℃)) | 1260 | 1400 | 1400 | |
Working temperature ((℃)) | ＜1000 | 1200 | 1350 | |
color | white | white | white | |
Fiber diameter (microns)(μm) | 3-5 | 3-5 | 3-5 | |
Chemical composition (%) | Al2O3 | 44 | 52-55 | 39-40 |
Al2O3+SiO2 | 96 | 99 | -- | |
Al2O3+SiO2+ZrO2 | -- | -- | 99 | |
ZrO2 | -- | -- | 15-17 | |
Fe2O3 | ＜1.2 | 0.2 | 0.2 | |
Na2O+K2O | ≤0.5 | 0.2 | 0.2 | |
| Aluminum silicate shell |
Using temperature ((℃)) | ＜1000 |
Volume density (kg/m3)(kg/) | 140 |
The hot surface temperature to coefficient of thermal conductivity (w/m.k)
| 0.034(20℃) |
0.09(400℃) | |
0.12(600℃) | |
Slag ball content (%)(Φ＞0.21mm) | 15.4 |
Tensile strength(kg/m2) | 2.66 |
Permanent line shrinkage thermal insulation for 24 hours | -3.5(600℃) |
Technical indicators
project | ordinary silicate aluminum plate |
color | white |
The Density of | 140(±5) |
Under the hot surface coefficient of thermal conductivity (w/m.k) | 0.035(20℃) 0.09(400℃) 0.126(600℃) 0.159(800℃) |
Permanent linear shrinkage (%) insulation (24 hours) | -4.0(900-1000) |
Slag ball content (%)Φ＞0.21mm | 14.2 |
Fiber fineness (microns) (μm) | 3 to 5 |
 |  |
 |  |
